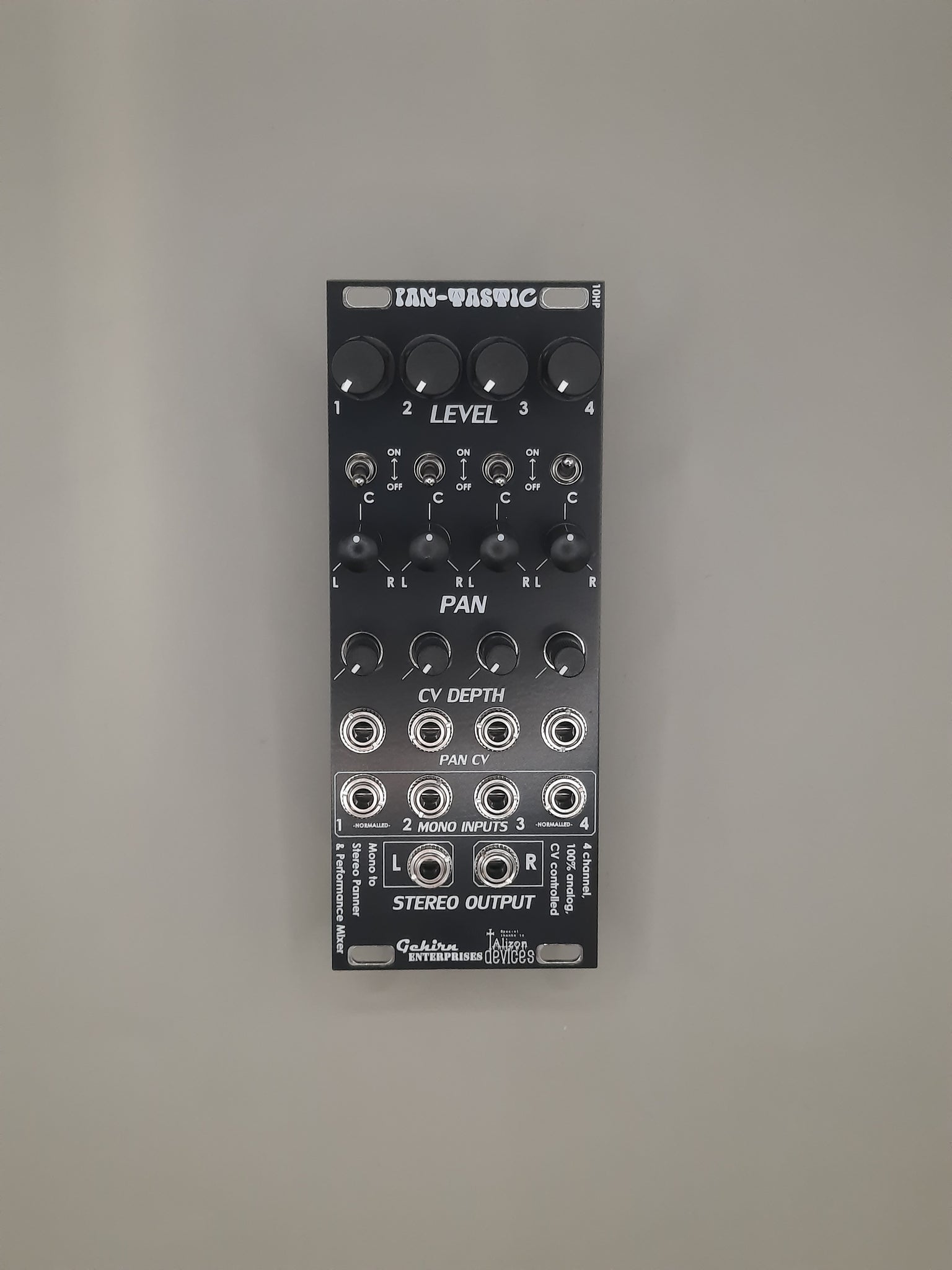

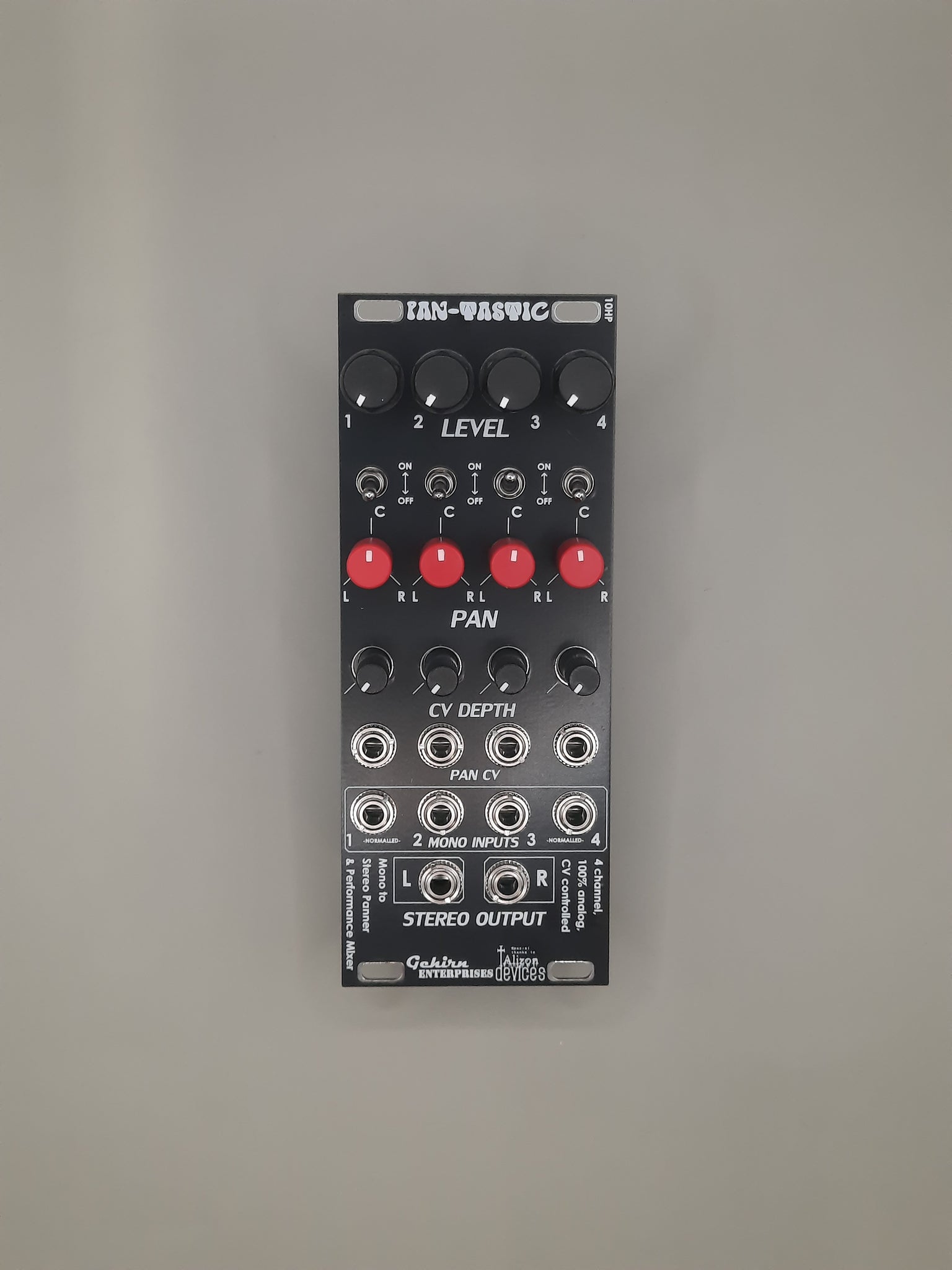

Pantastic is a 4 channel 10HP Mixer. It's a great mid point mixer that sits nicely in a space in between a simple level mixer, and a large performance mixer in terms of features.
It has CV controlled panning on all channels, with CV depth knob, and a center detent pan control knob.
It also has mutes and level control for each channel.
Input 1 is normalled to input 2, and Input 3 is normalled to input 4.
Besides the input normalling all of the channels are independent.
Panning is done with 8x LM13700 VCAs.
The mutes and normalleds input open up some nice possibilities with drops, boosts, solos etc, as well as switching in tremolo panning, metallic audio rate AM tones and it can do a lot more than getting 4x mono sources to zip around the stereo image.
Current: +12V 55mA, -12V 50mA
Depth: 24mm to PCB, 36mm to tallest component, 43mm with power installed.
